VC080 – 4K HDMI EDID Emulator with Programmer

VC080 – 4K HDMI EDID Emulator with Programmer

0 out of 5

  • Automatically manages EDID communication between connected devices
  • EDID Wizard – allows a user an easy way to manage EDID settings
  • EDID mode selection – Default, Learning , Programming
  • HDMI (3D, Deep Color), HDCP compatible
Mã: VC080 Danh mục: Từ khóa: , ,
Compare

Mô tả

Overview

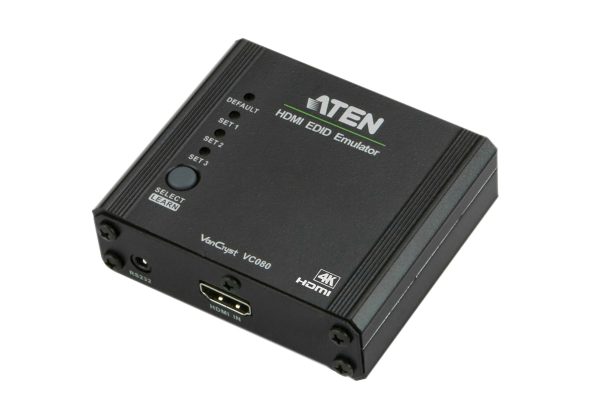

The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.
The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

Package Contents

1x VC080 4K HDMI EDID Emulator with Programmer
1x RS-232 Configuration Cable
1x USB to DC Power Cord
1x User Instructions

Features

  • Superior video quality – HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
  • EDID Wizard – allows a user an easy way to manage EDID settings
  • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
  • EDID mode selection – Default, Learning , Programming
  • HDMI (3D, Deep Color), HDCP compatible
  • Supports Dolby True HD and DTS HD Master Audio
  • Automatically manages EDID communication between connected devices
  • Signaling rates up to 2.25 Gbits in support of 1080p display
  • LED indication of video source devices
  • Supports wide screen
  • Supports hot-plugging
  • Non-Powered *
    * If the video source is not receiving enough power an external power cord should be connected

Diagram

.

Specifications

Max. Video Resolution 4096*2160@30Hz (4:4:4)
3840*2160@30Hz (4:4:4)
Data Rate 10.2 Gbps
Video Input

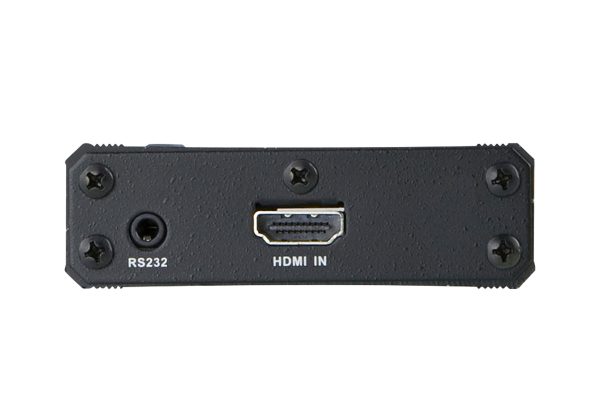

Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Video Output

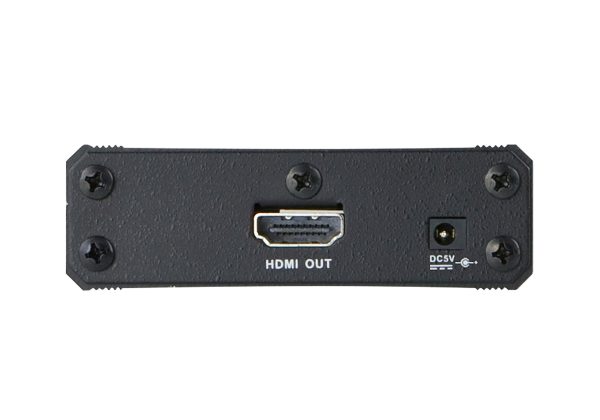

Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Video
Compliance HDMI 1.4 (3D, Deep Color)
HDCP Compatible
Consumer Electronic Control (CEC)
Audio
Output 1 x HDMI Type A Female (Black)
EDID Settings EDID Mode: Default / Learn / Customized (EDID Wizard support)
Connectors
Power 1 x DC Jack
Power Consumption DC5V:0.17W:1BTU
Environmental
Operating Temperature 0 – 50 ºC
Storage Temperature -20 – 60 ºC
Humidity 0 – 80% RH,  Non-Condensing
Physical Properties
Housing Metal
Weight 0.15 kg ( 0.33 lb )
Dimensions (L x W x H) 7.90 x 7.76 x 2.45 cm
(3.11 x 3.06 x 0.96 in.)
Carton Lot 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
