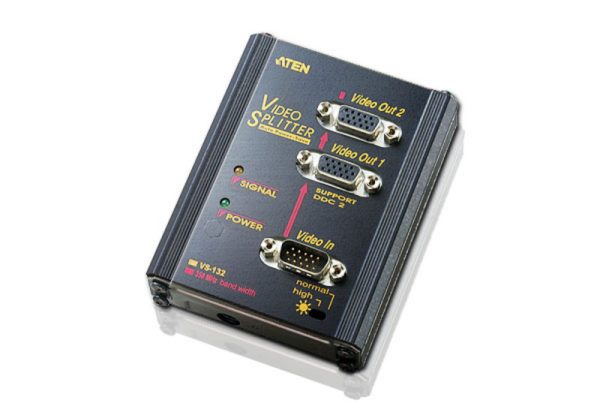

VS132 – 2-Port VGA Splitter Wall Plate (350MHz)

VS132 – 2-Port VGA Splitter Wall Plate (350MHz)

0 out of 5

One video input to two video outputs
Superior video quality – 1920 x 1440
Supports up to 350 MHz bandwidth
Cascadable to three levels – provides up to 8 video signals

SKU: VS132 Category: Video Splitter Tags: Professional Audio/Video, Video Splitters, VS132

Add to wishlist

Compare

Description
Vendor Info
More Products

Description

Overview

The VS132 Video Splitter is a boosting device to duplicate the video signal from one source to two outputs, and is ideal for any monitor using analog signals. The VS132 also extends the transmission distance up to 65 m (210 feet) making it excellent for public broadcast systems.
To transmit multiple, high quality, VGA, SVGA, XGA, UXGA, QXGA, WUXGA and multisync video signals over long distances without hassle, the VS132 is your best choice. Other useful applications for the VS132 Video Splitter include:
• Financial – the remote display of stock market information
• Education – the remote display of lectures and lessons to lecture halls and classrooms
• Business – the remote display of addresses to overflow rooms; video conferencing; and demos

Package Contents

1x 2-Port Video Splitter
1x Power Adapter
1x User Instructions

Features

One video input to two video outputs
Cascadable to three levels – provides up to 8 video signals
Supports up to 350 MHz bandwidth
Long Distance Transmission – up to 65 m (210 ft) *
Superior video quality – 1920 x 1440
DDC, DDC2, DDC2B Compatible (Port 1 only*)
Supports VGA, SVGA, XGA, UXGA, QXGA, WUXGA and multisync monitors
Note: If you connect a DDC type monitor to Video Out 1, all other monitors must be able to support the highest video resolution that the DDC monitor can provide.

* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality.

Specifications

Video Input
Interfaces	1 x HDB-15 Male (Blue)
Impedance	75 Ω
Max. Distance	1.8 m
Video Output
Interfaces	2 x HDB-15 Female (Blue)
Impedance	75 Ω
Video
Max. Bandwidth	350 MHz
Max. Resolution	Up to 1920 x 1440
Max. Distance	Up to 65 m
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:0.42W:2BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 – 60°C
Humidity	0 – 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.19 kg ( 0.42 lb )
Dimensions (L x W x H)	10.36 x 7.90 x 2.82 cm (4.08 x 3.11 x 1.11 in.)
Carton Lot	20 pcs
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
