PE0118S -1U Basic PDU with Surge Protection

6.1
6.2
6.3
6.4

PE0118S -1U Basic PDU with Surge Protection

PE0112 -Basic PDU Series
PE0218S -1U Basic PDU with Surge Protection
0 out of 5
( There are no reviews yet. )

  • Space saving – 1U rack mount design
  • IEC or NEMA outlet models
  • Overcurrent protection
  • Surge protection
Category: Tags: ,
Add to wishlist
Compare

Description

Overview

ATEN’s Basic PDU family is extended with 1U members containing 18 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity; plus, the equipment downtime is reduced as a result of the overcurrent protection design. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets.

Package Contents

  • 1 x power distribution unit
  • 1 x power cord
  • 1 x user instructions

Features

  • Space saving – 1U rack mount design
  • IEC or NEMA outlet models
  • Overcurrent protection
  • Surge protection
  • Aluminum material
  • Works with data centers, server rooms, and telecom equipment

Diagram

Specifications

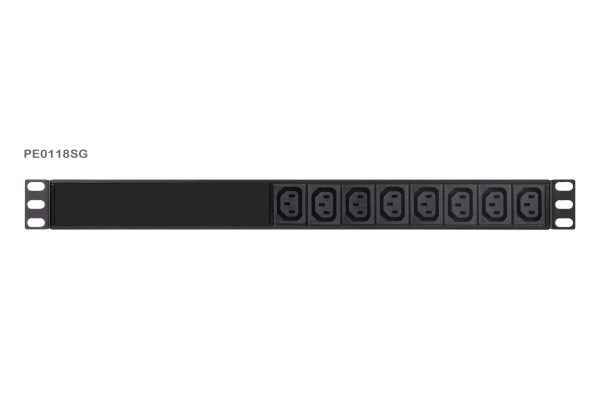

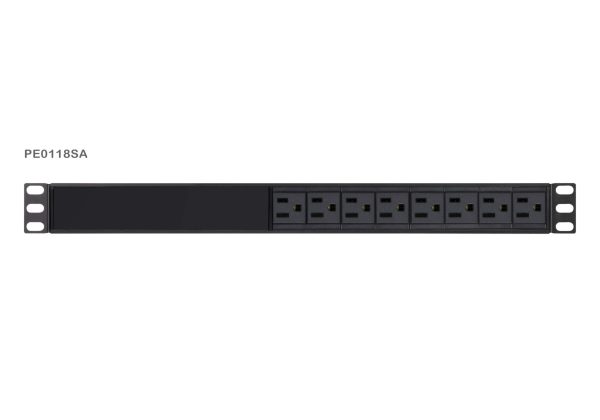

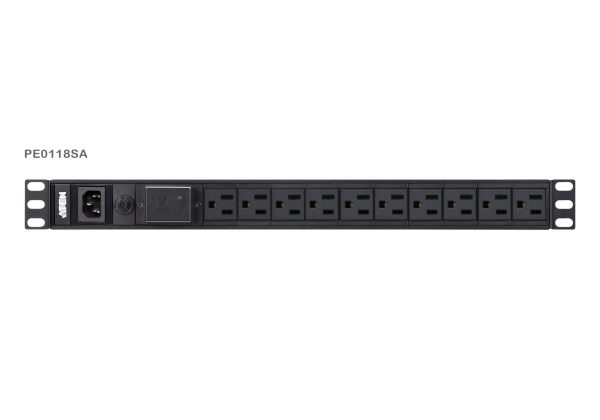

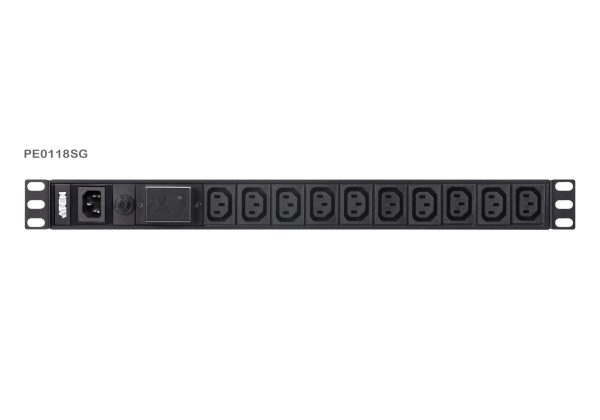

Function PE0118SA PE0118SG
Electrical
Nominal Input Voltage 100-120 VAC 100-240 VAC
Maximum Input Current 15A Max
(UL de-rated 12A Max)		 10A Max
Input Frequency 50-60 Hz 50-60 Hz
Input Connection NEMA 5-15P IEC-320 C14
Input Power 1800VA(Max);
1440VA(UL de-rated)		 2400VA (Max)
Outlet Type (18) NEMA 5-15R (18) IEC 320 C13
Maximum Output Current (Outlet) 15A Max
(UL de-rated 12A Max)
(PSE 10A)		 10A Max
Maximum Output Current (Bank) 15A Max
(UL de-rated 12A Max)		 10A Max
Maximum Output Current (Total) 15A Max
(UL de-rated 12A Max)		 10A Max
OPD(Overcurrent Protection Device) Yes Yes
Physical Properties
Dimensions (L x W x H) 48.20 x 4.44 x 8.85 cm
(18.98 x 1.75 x 3.48 in.)		 48.20 x 4.44 x 8.85 cm
(18.98 x 1.75 x 3.48 in.)
Weight 1.22 kg ( 2.69 lb ) 1.22 kg ( 2.69 lb )
Power Cord Length 10ft(14#) 10ft(3×1.0mm2)
Environmental
Temperature (Operating / Storage) 0 – 40℃ / -20 – 60℃ 0 – 40℃ / -20 – 60℃
Elevation (Operating / Storage) 3000m 3000m
Compliance
EMC Verification FCC Class A CE Class A
Safety Verification By Request CE,LVD
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
