PE0210S -Basic 1U PDU with surge protection

1.1
1.2
1.3
1.4

PE0210S -Basic 1U PDU with surge protection

PE0324B -0U Basic PDU
PE0209S -Basic 1U PDU with surge protection
0 out of 5
( Chưa có đánh giá nào. )

  • Surge Protection
  • Space saving — 1U rack mount design
  • IEC or NEMA outlet models
  • Overcurrent Protection
Mã: PE0210S Danh mục: Từ khóa: ,
Add to wishlist
Compare

Mô tả

Overview

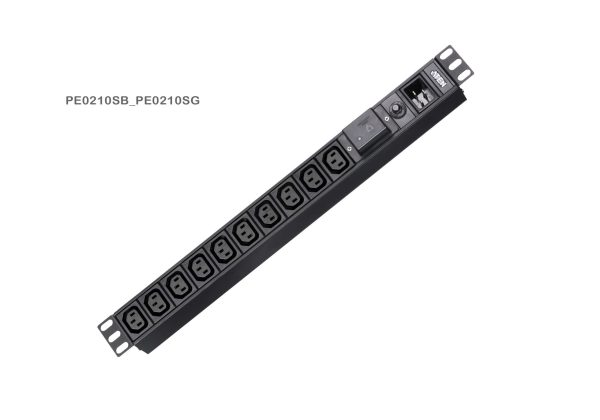

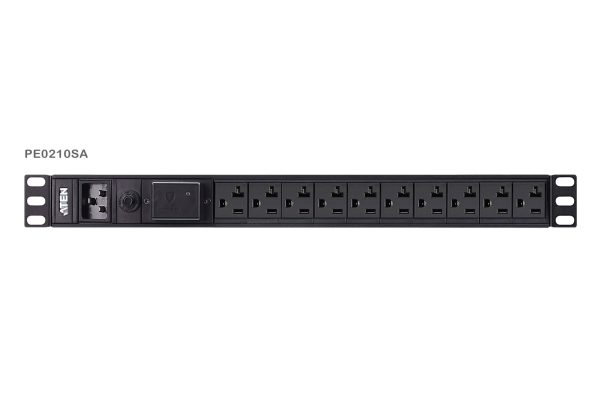

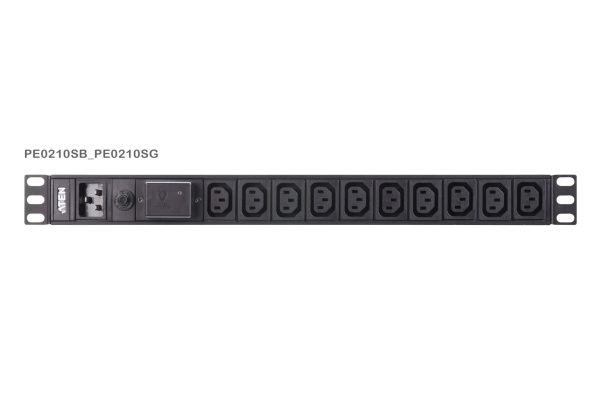

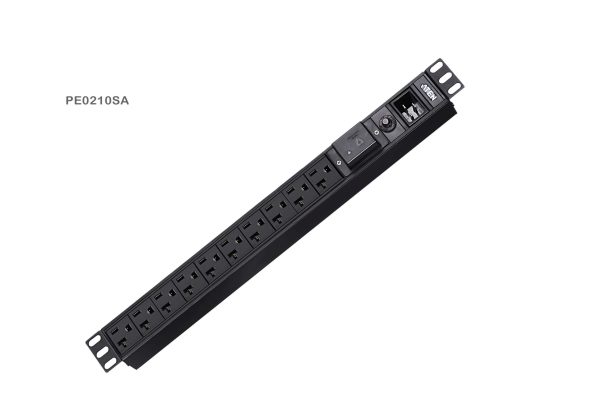

The Aten’s PE0210S, a 10-outlet, 1U rack mount power distribution unit (PDU), provides IEC and NEMA output. It distributes power to 10 receptacles from a single plug with unfiltered electrical pass-through. The PE0210S also provides surge protection, prevents damage to your equipment from power surges and spikes. The integrated surge protector includes a LED indicator, letting you know the status of your equipment.

Aluminum housing helps prolong the units life with rugged casing made of impact-resistant material for maximum durability. Basic 1U PDU can be easily mounted to wall, wooden furniture, or work bench.

Package Contents

  • 1x Basic PDU
  • 1x Power cord
  • 1x User Instructions

Features

  • Space saving -1U rack mount design
  • IEC or NEMA outlet models
  • Surge Protection
  • Over-current Protection
  • Aluminum material
  • Works with data centers, server rooms and telecom equipment

Diagram

Specifications

Function PE0210SA PE0210SB PE0210SG
Electrical
Nominal Input Voltage 100-120 VAC 100-240 VAC 100-240 VAC
Maximum Input Current 20A Max
(UL de-dated 16A Max)		 20A Max
(UL derating 16A Max)		 16A (Max)
Input Frequency 50-60 Hz 50-60 Hz 50-60 Hz
Input Connection For A Plug: NEMA L5-20P
For A2 Plug:NEMA 5-20P		 NEMA L6-20P For G Plug: IEC-320 C20
For Z Plug: Chinese 16A
Input Power 2400VA(Max);
1920VA(UL de-rated)		 4800VA(Max);
3840VA(UL de-rated)		 3840VA(Max)
Outlet Type (10) NEMA 5-20R (10) IEC 320 C13 (10) IEC 320 C13
Maximum Output Current (Outlet) 20A Max
(UL de-dated 16A Max)		 15A Max
(UL derating 12A Max)		 10A (Max)
Maximum Output Current (Bank) 20A Max
(UL de-dated 16A Max)		 20A Max
(UL derating 16A Max)		 16A (Max)
Maximum Output Current (Total) 20A Max
(UL de-dated 16A Max)		 20A Max
(UL derating 16A Max)		 16A (Max)
OPD(Overcurrent Protection Device) Yes Yes Yes
Physical Properties
Dimensions (L x W x H) 48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)		 48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)		 48.20 x 4.44 x 4.50 cm
(18.98 x 1.75 x 1.77 in.)
Weight 0.67 kg ( 1.48 lb ) 0.67 kg ( 1.48 lb ) 0.67 kg ( 1.48 lb )
Power Cord Length 10ft(12#) 10ft(12#) 10ft(3*2.5mm2)
Environmental
Temperature (Operating / Storage) 0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.		 0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.		 0 – 40℃ / -20 – 60℃
*When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations.
Elevation (Operating / Storage) 3000m 3000m 3000m
Compliance
EMC Verification FCC Class A FCC Class A –
Safety Verification By Request By Request LVD
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
